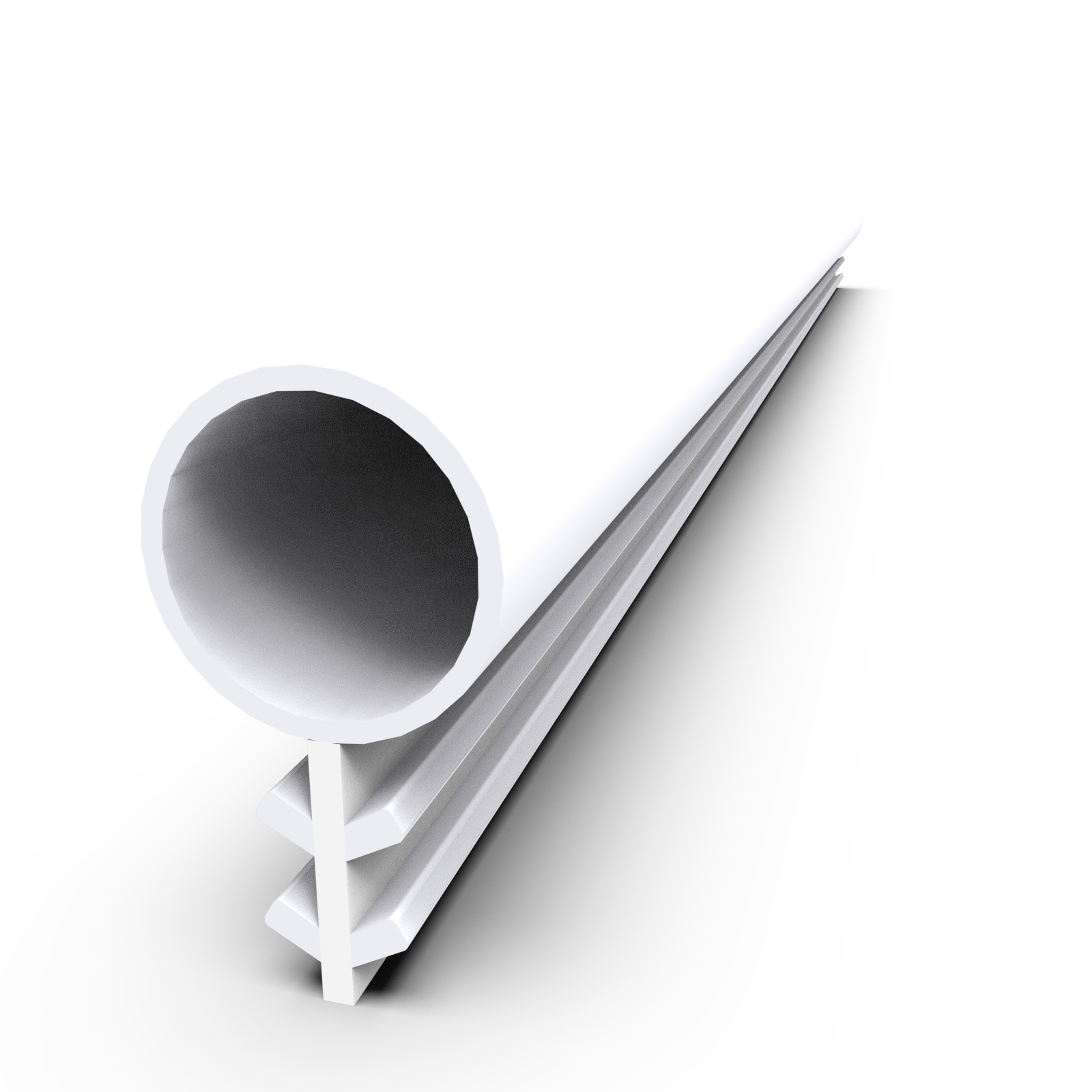

K-Base extruded weather stripping

The extruded TPE kerf base weatherstrip offers the flexibility and performance of a thermoset rubber, ensuring excellent sealing performance and long-term durability. Designed with a dual-material construction, it features a soft bulb and flexible ribs for optimal compression, along with a stiffer central body to facilitate insertion into wood.

Some models in the range are also available with a slippery outer layer on the bulb, enabling smooth performance in sliding applications.

Available in various bulb diameters, this weatherstrip adapts to different sealing requirements.

Characteristics

• Suitable for saw grooves with a width of 2.0 mm (0.078″)
• Insertion depth varies depending on the model (6.35 mm to 12.7 mm / 0.25″ to 0.5″)
• Available bulb diameters: 7.6 mm (0.300″), 12.7 mm (0.500″), and 16 mm (0.625″)
• Recommended compression: 25% (minimum: 10%; maximum: 50%)
• Dual-material construction for easy installation and enhanced performance
• Color: white (for other colors, contact Servitek Foussier)
