T-slot extruded weather stripping

Length: 1000'
Color: White
Compare Color
Click On Color / Pattern To Compare, Click And Drag Images To Reorder
Ask a Question

  • Sku: 429511
Description

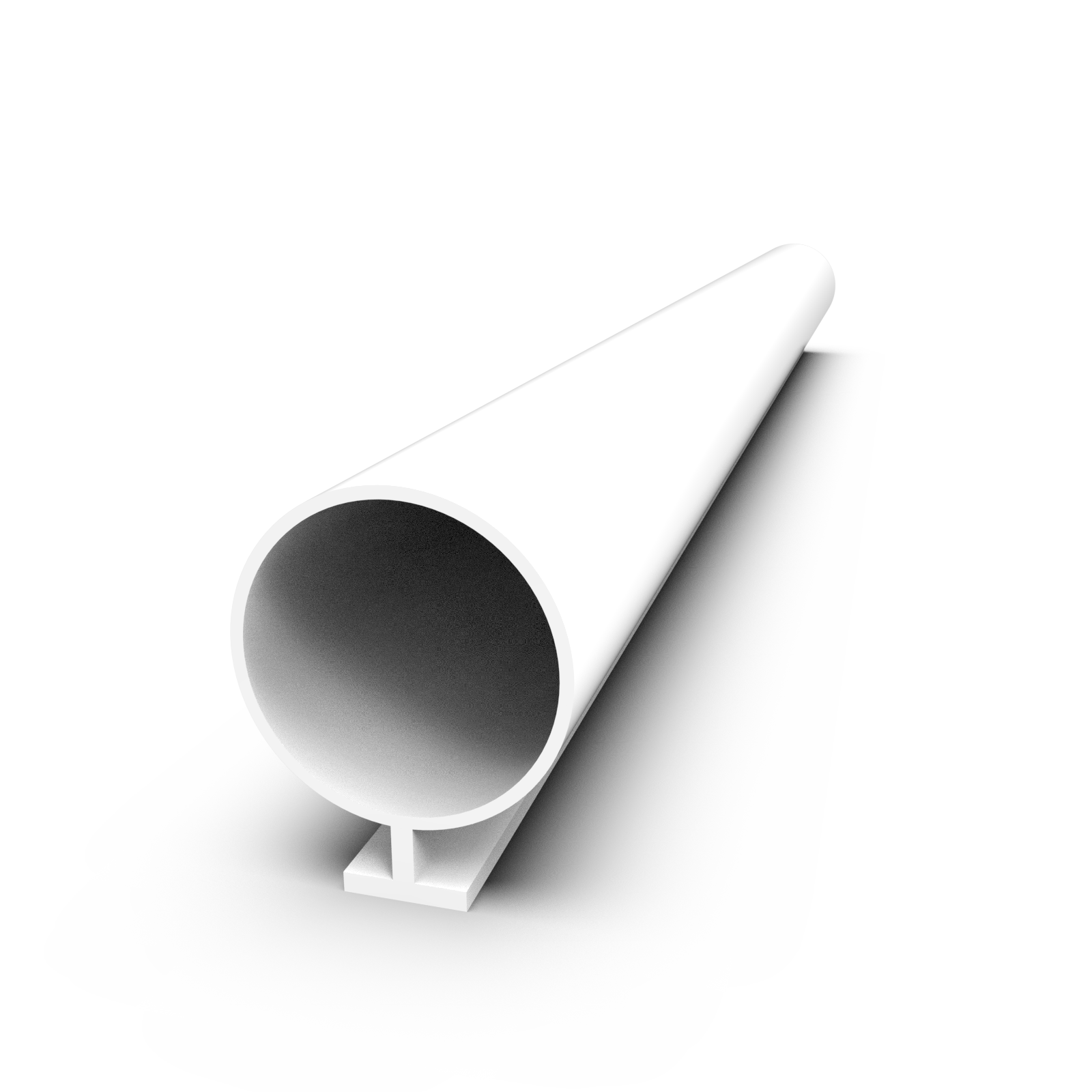

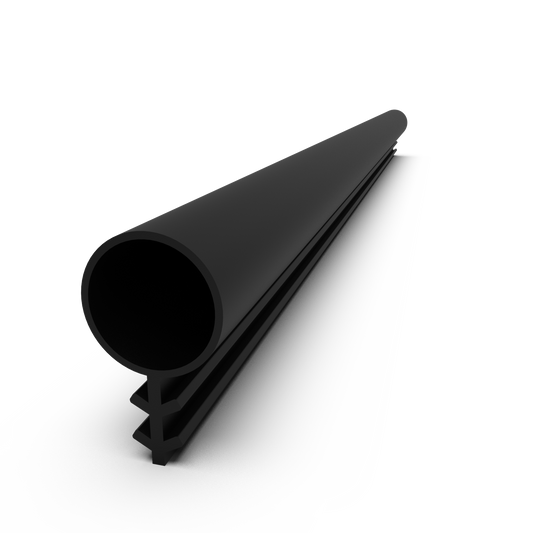

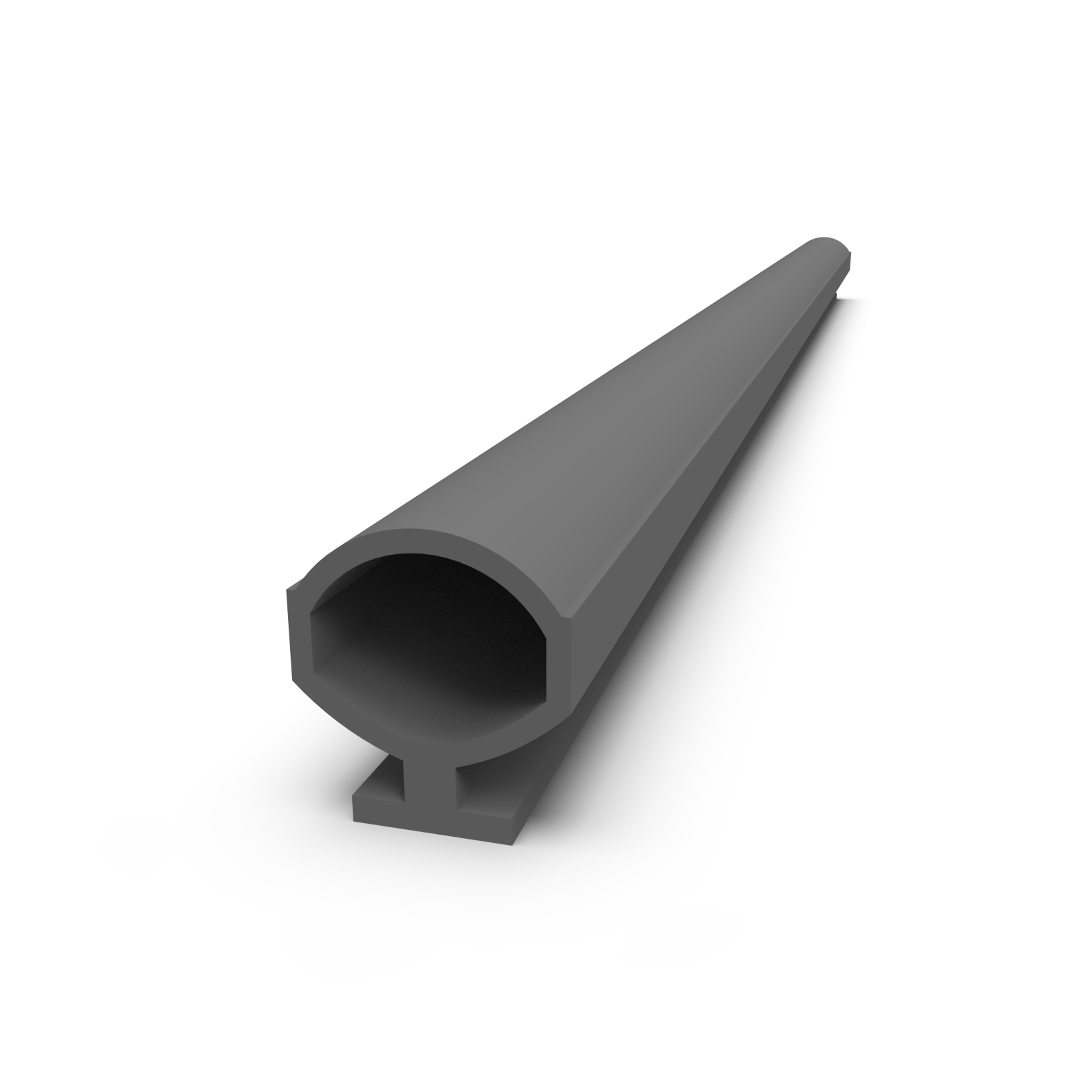

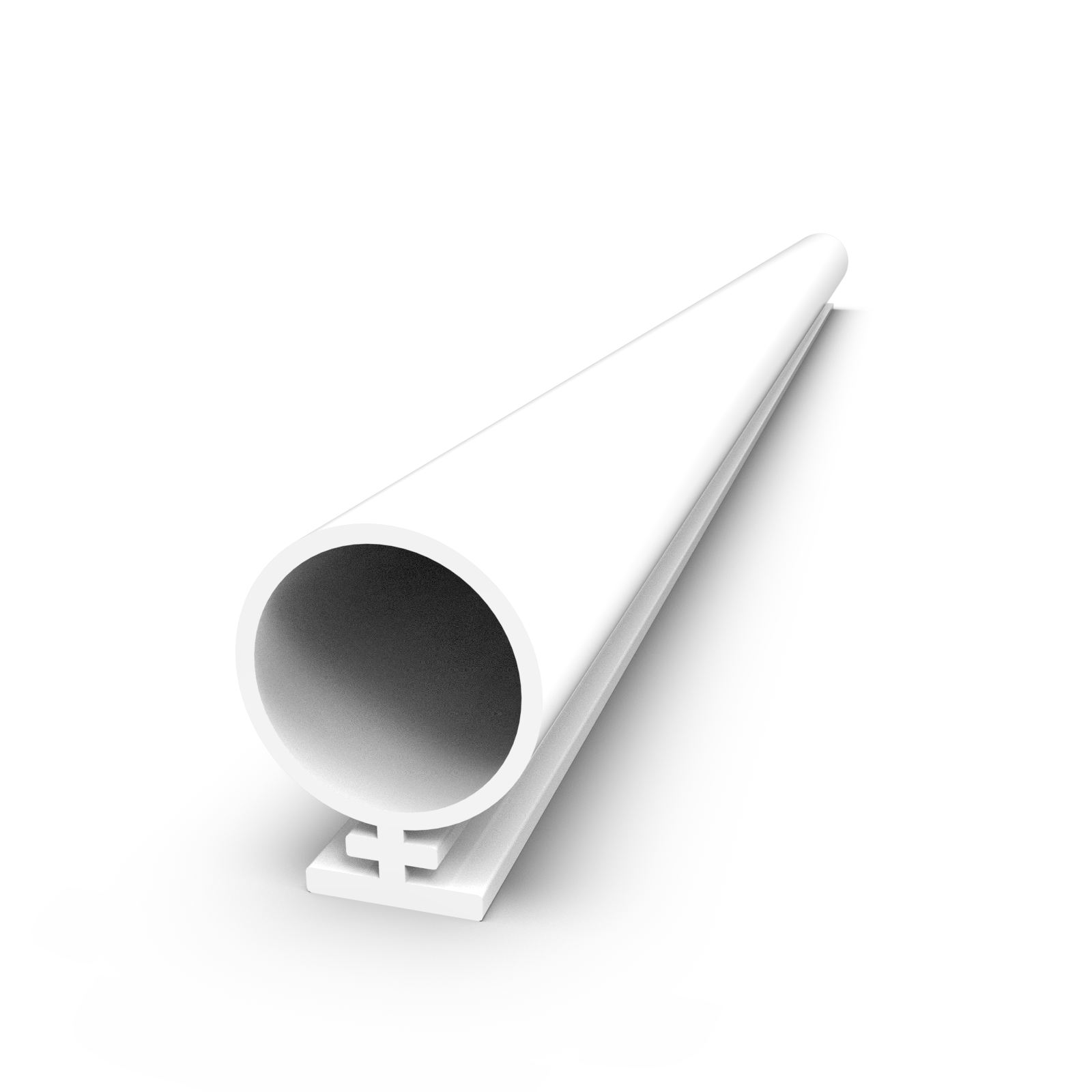

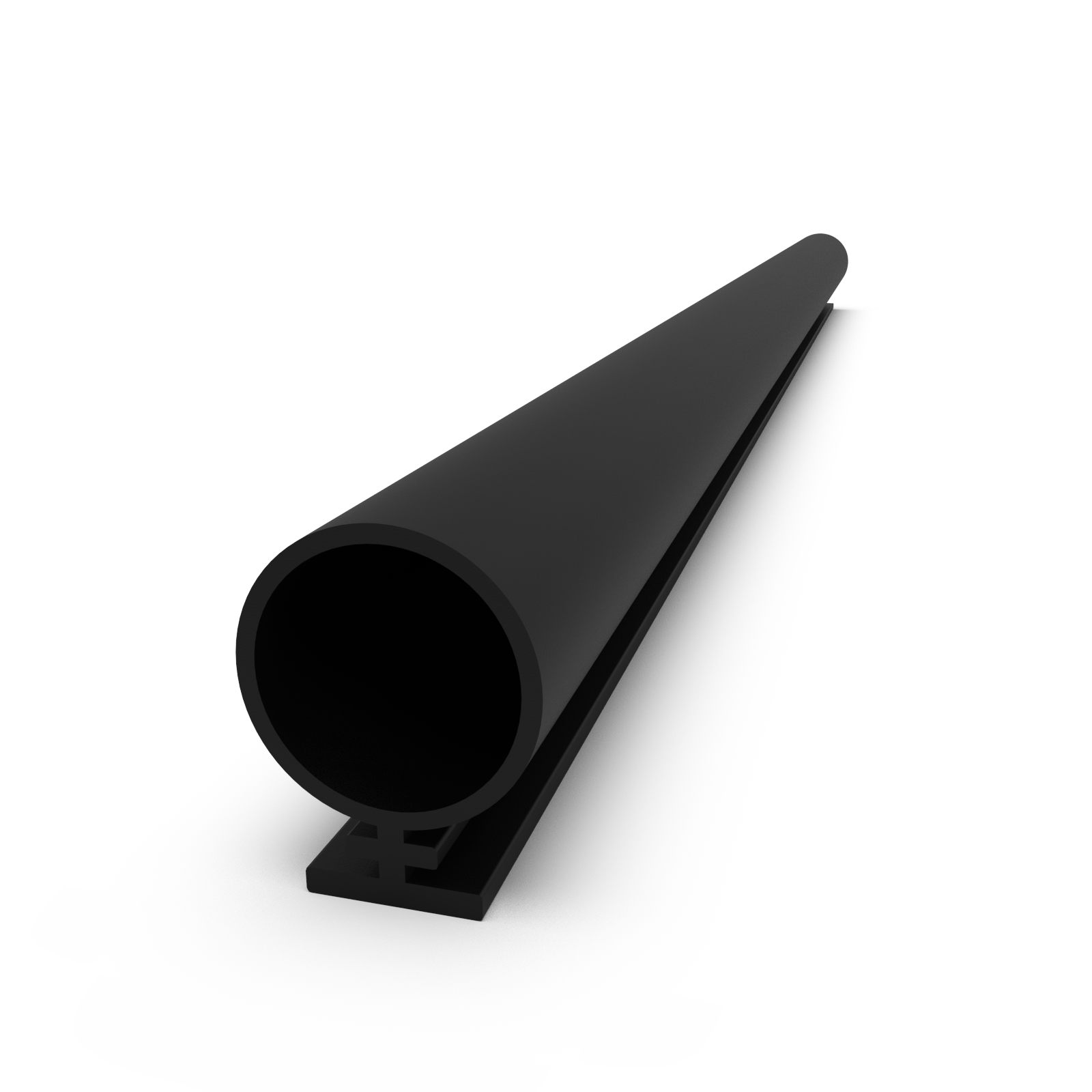

The T-slot extruded TPE weatherstrip offers the flexibility and performance of thermoset rubber, providing reliable sealing and long-lasting durability. Designed with a dual-durometer construction, it features a rigid T-base for secure insertion and a soft, flexible bulb that ensures optimal compression.

Available in multiple configurations, this weatherstrip adapts to various sealing requirements, including different bulb diameters, base widths, and profiles. Some models also feature a flexible base or off-center design to accommodate specific installation needs.



Characteristics

  • Dual-durometer construction: rigid base for insertion and soft bulb for compression
  • T-base configurations available (centered and off-center)
  • T-base widths available:
    • 4.5 mm (0.177″)
    • 4.75 mm (0.190″)
    • 4.8 mm (0.190″) off-center
    • 6.9 mm (0.270″)
  • Bulb sizes available (diameter or equivalent dimensions):
    • 4.75 mm (0.190″)
    • 7 mm (0.275″)
    • 7.6 mm (0.300″)
    • 8 mm (0.315″)
    • 10 mm (0.300″ / 0.394″ width)
    • 10.5 mm (0.413″)
    • 12.7 mm (0.5″)
  • Profile variations available (standard bulb, flexible base, off-center base)
  • Recommended compression: 25% (minimum: 10%; maximum: 50%)
  • Available colors: white, black
