Description
The T-slot extruded TPE weatherstrip offers the flexibility and performance of thermoset rubber, providing reliable sealing and long-lasting durability. Designed with a dual-durometer construction, it features a rigid T-base for secure insertion and a soft, flexible bulb that ensures optimal compression.
Available in multiple configurations, this weatherstrip adapts to various sealing requirements, including different bulb diameters, base widths, and profiles. Some models also feature a flexible base or off-center design to accommodate specific installation needs.
Characteristics
- Dual-durometer construction: rigid base for insertion and soft bulb for compression
- T-base configurations available (centered and off-center)
- T-base widths available:
- 4.5 mm (0.177″)
- 4.75 mm (0.190″)
- 4.8 mm (0.190″) off-center
- 6.9 mm (0.270″)
- Bulb sizes available (diameter or equivalent dimensions):
- 4.75 mm (0.190″)
- 7 mm (0.275″)
- 7.6 mm (0.300″)
- 8 mm (0.315″)
- 10 mm (0.300″ / 0.394″ width)
- 10.5 mm (0.413″)
- 12.7 mm (0.5″)
- Profile variations available (standard bulb, flexible base, off-center base)
- Recommended compression: 25% (minimum: 10%; maximum: 50%)

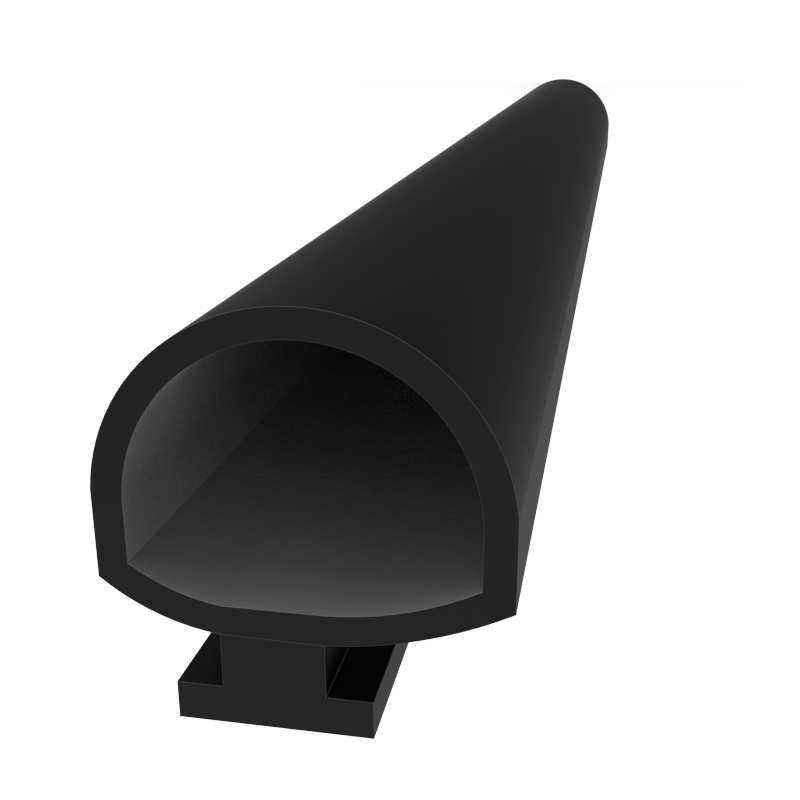

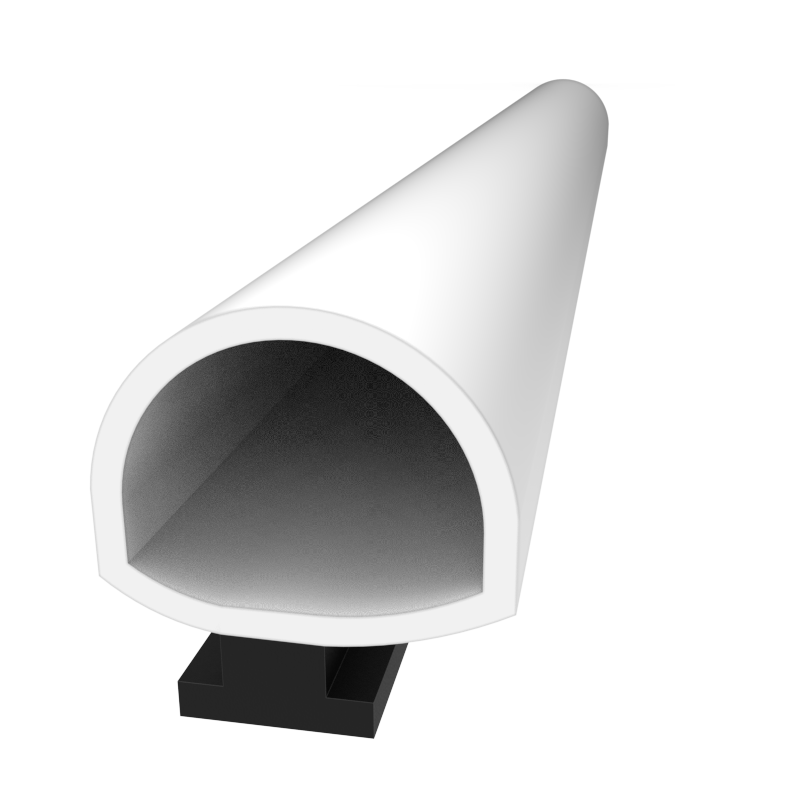

- Available colors: white, black
